How Our Inspection Process Works
01.
Initial Consultation
Discuss your cooling tower’s condition and schedule an inspection.
02.
On-Site Inspection
Our specialists conduct a full structural, mechanical, and thermal analysis.
03.
Comprehensive Reporting
Receive a detailed report with findings and recommendations.
04.
Implementation Plan
Work with OBR on the next steps for maintenance or repairs.
What Happens If You Skip Inspections?
Higher Energy Bills
Inefficient systems increase operational costs.
Unexpected Failures
Small issues become catastrophic problems.
Regulatory Non-Compliance
Safety violations can result in hefty fines.

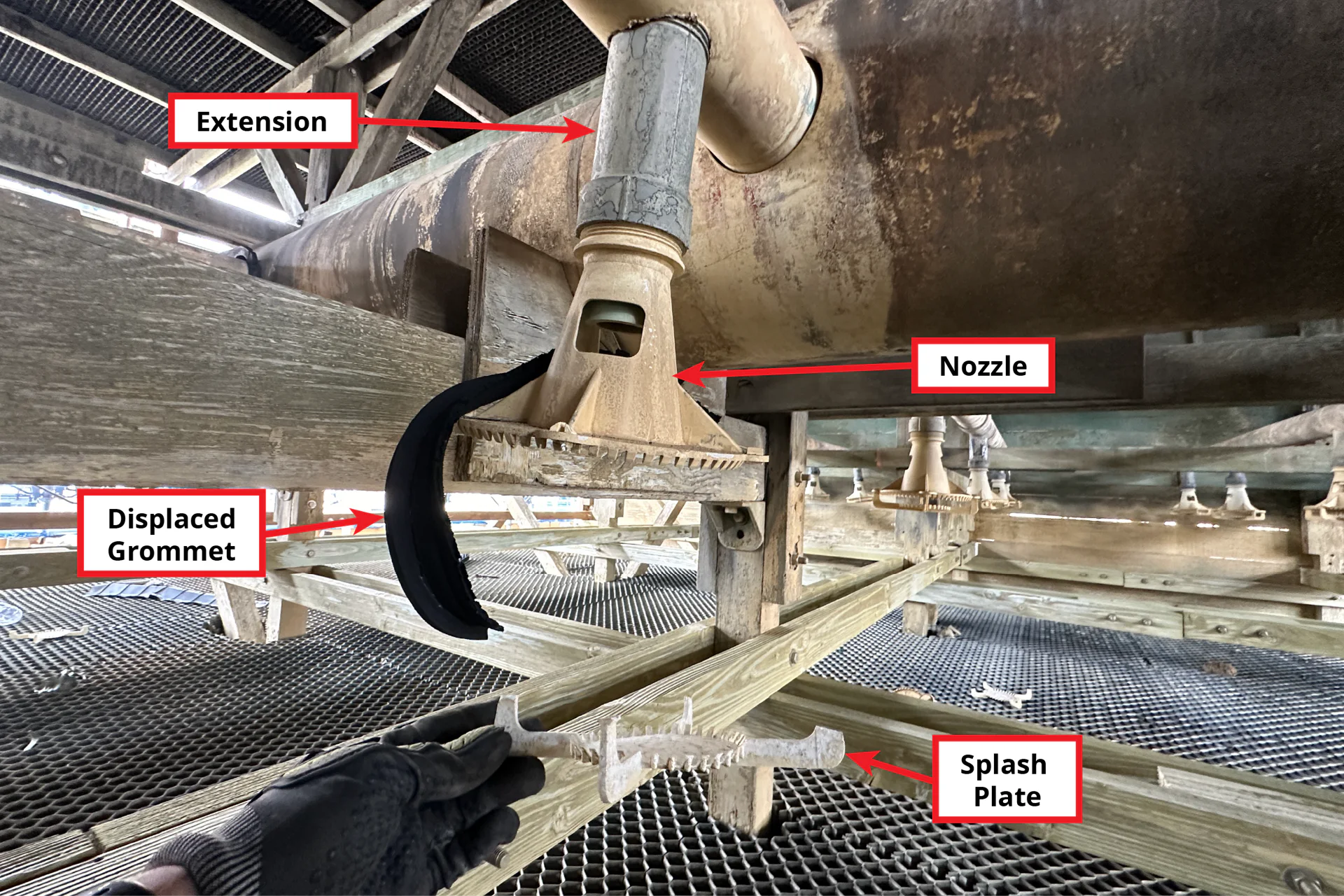

Figure 1: Displaced nozzle splash plate and grommet

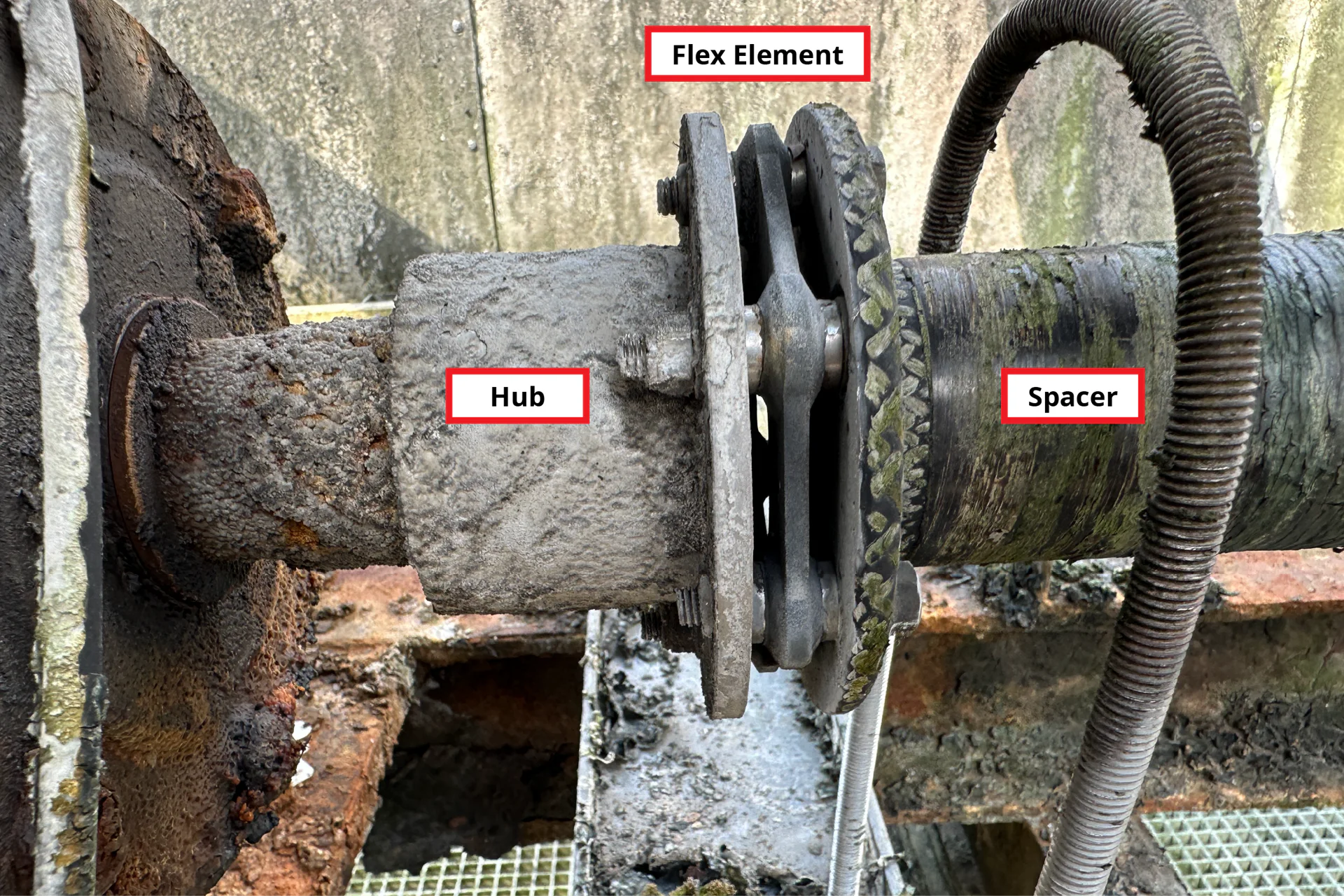

Figure 2: Cell 11F2 flex element significant wear

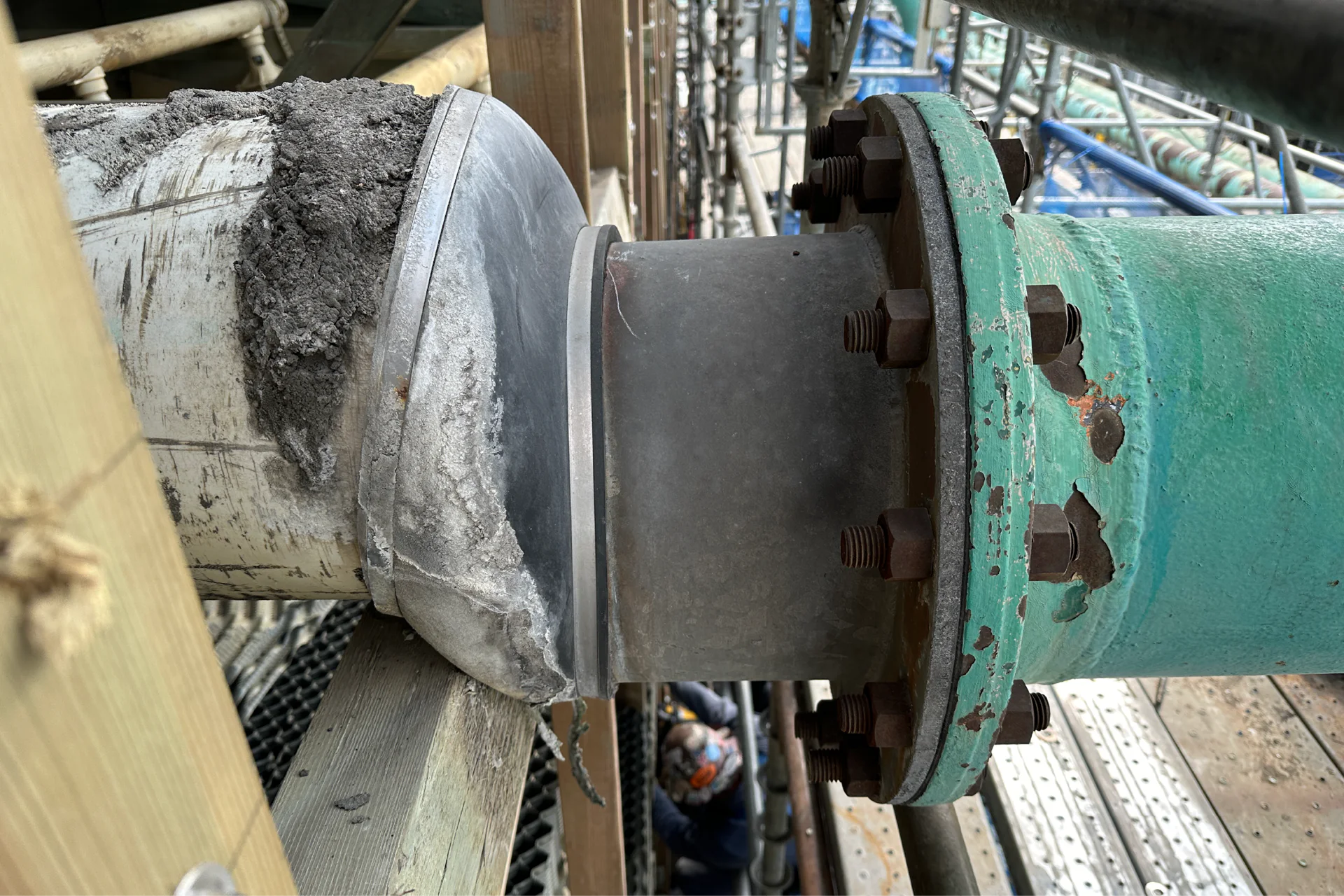

Figure 4: Pipe misalignment in Cell 11F3.

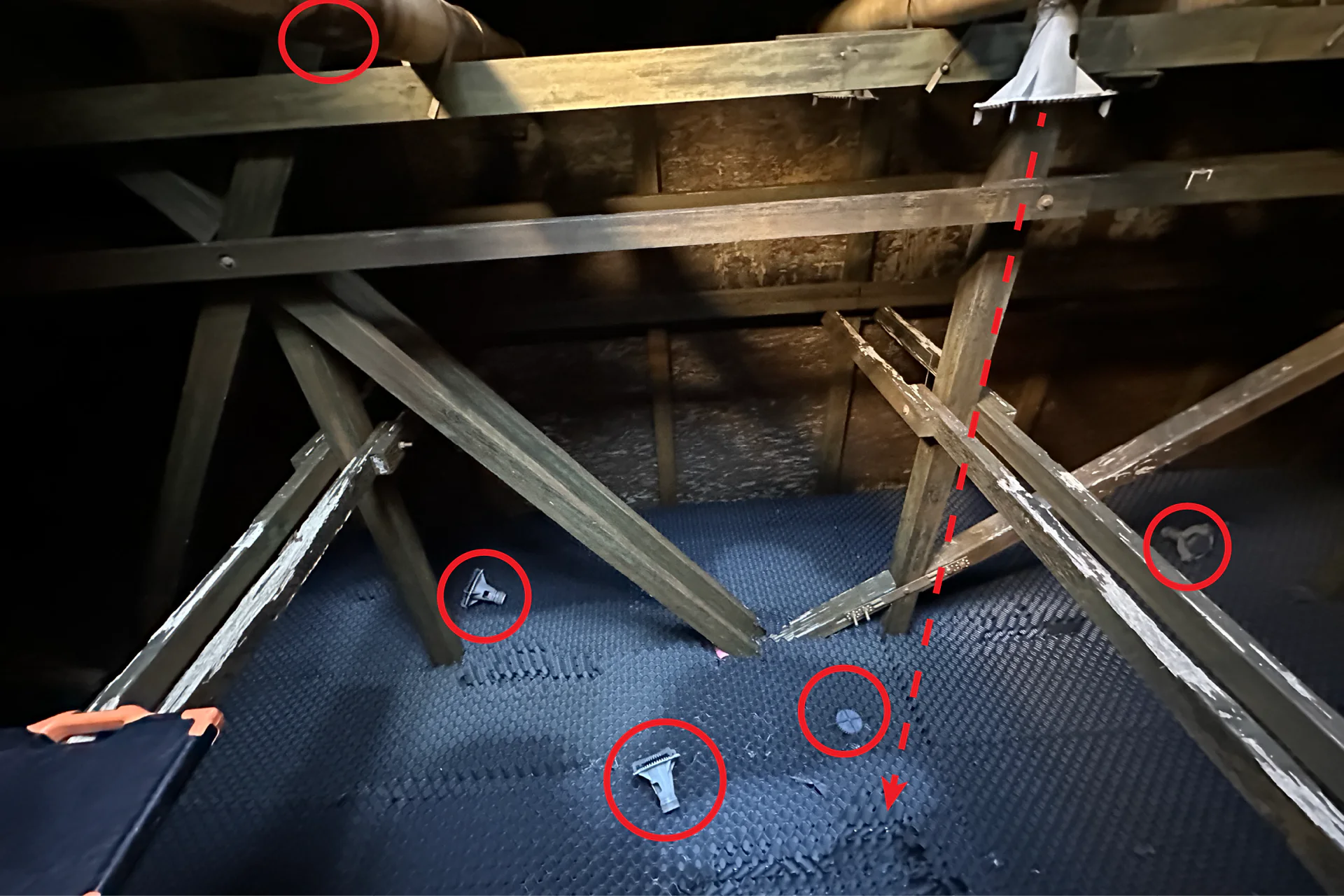

Figure 5: Thirteen fill packs exhibit damage as a result of prolonged water loading caused by damaged or displaced nozzles.

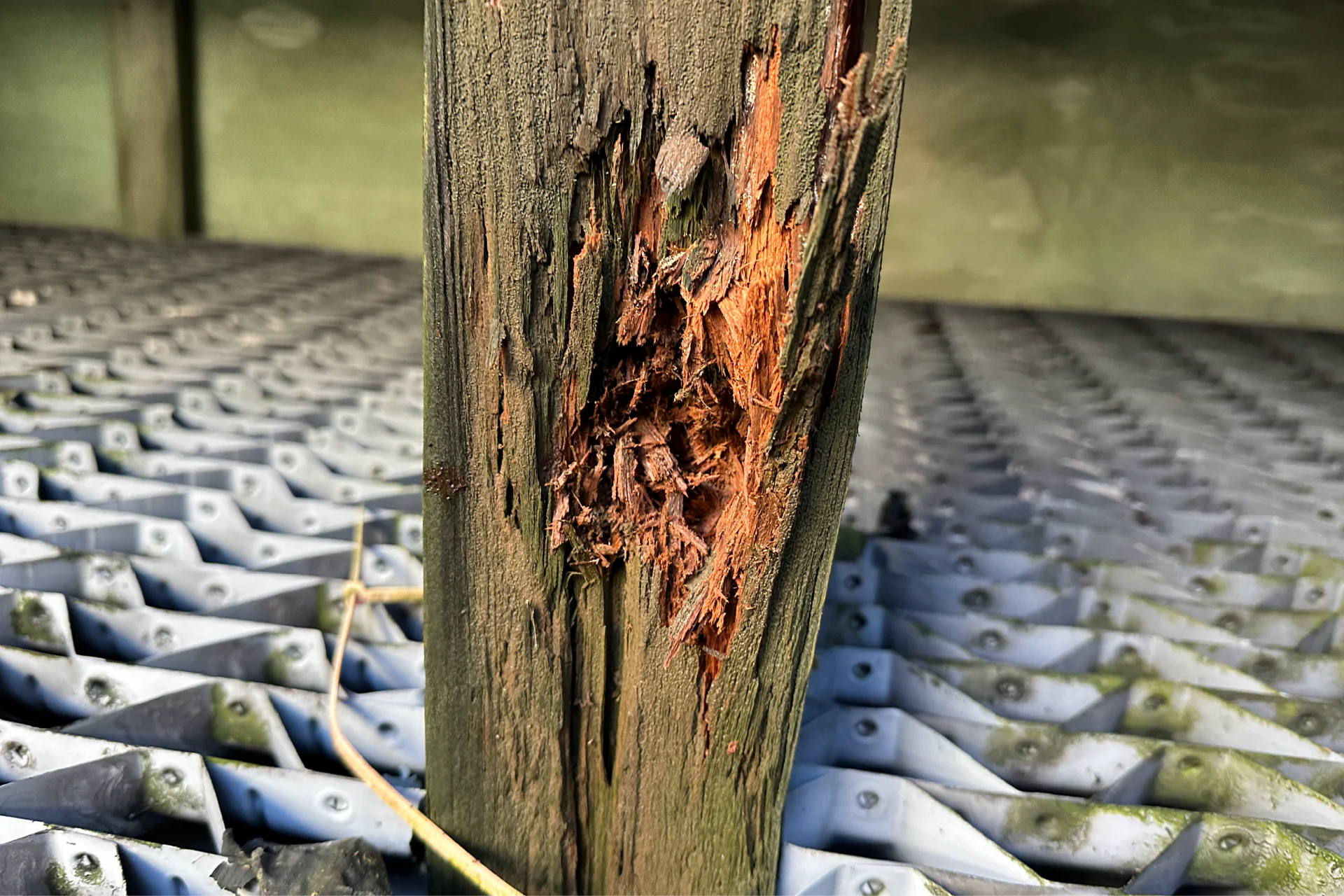

Figure 6: Significant internal rot identified in column.

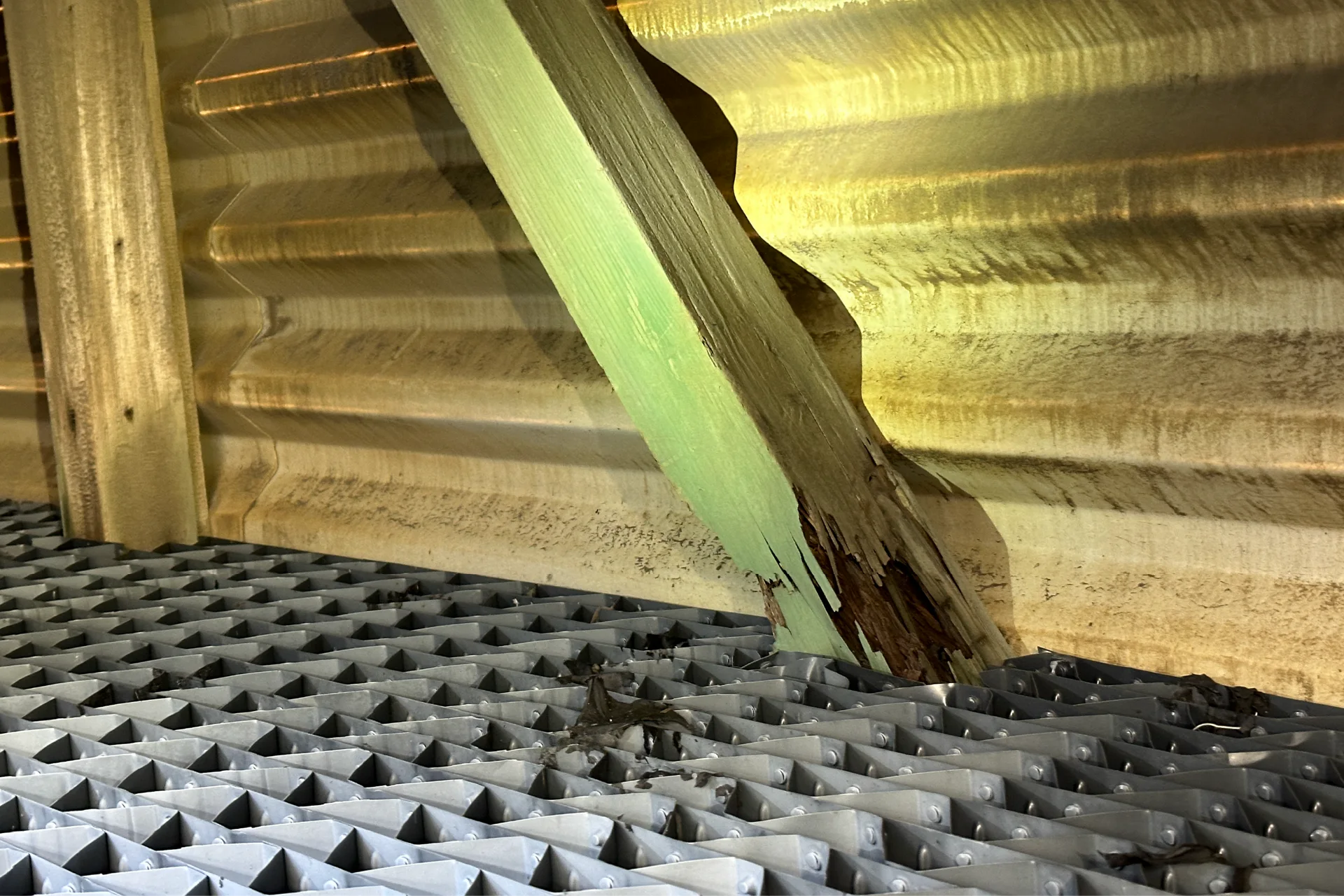

Figure 7: Significant internal rot identified in brace.

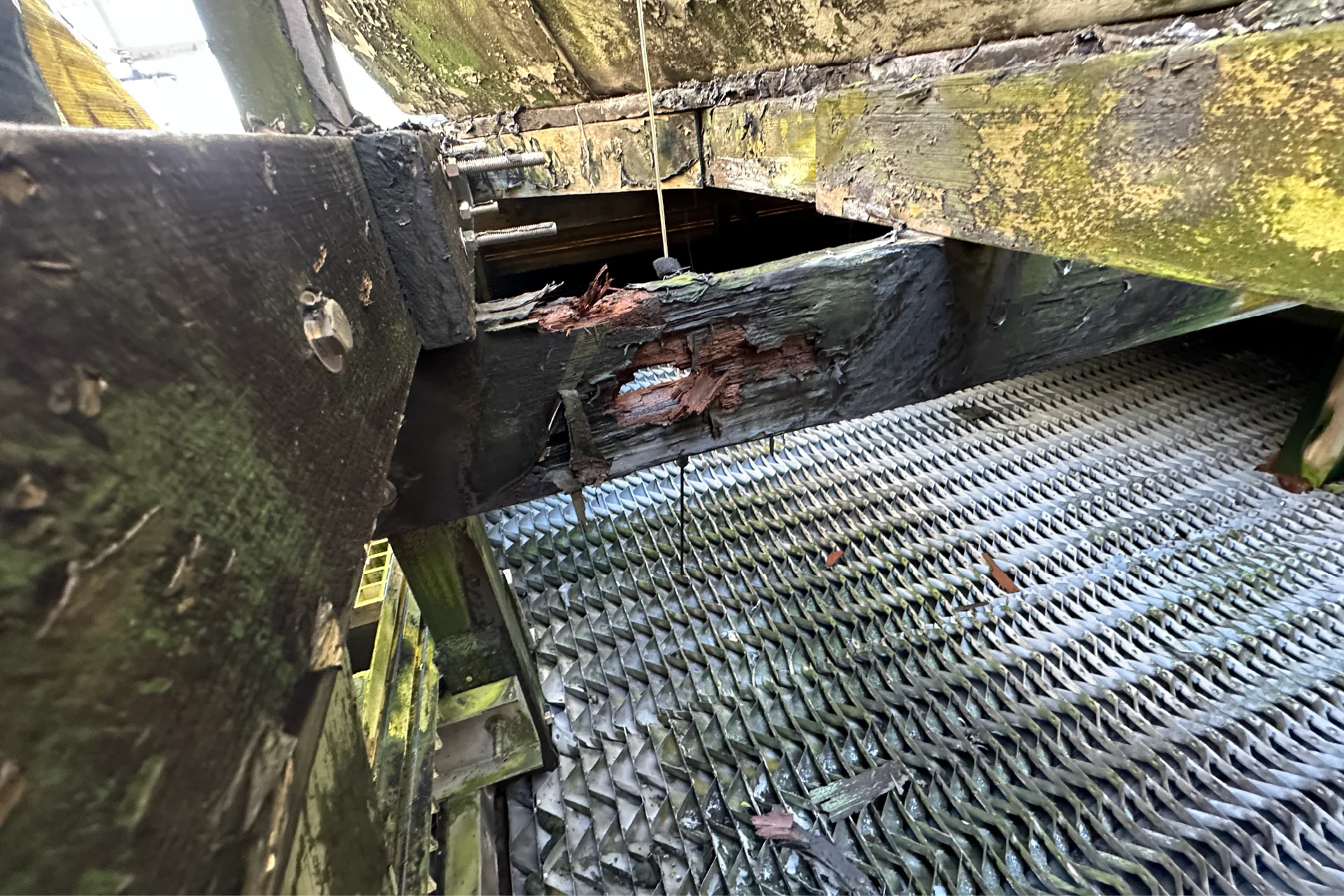

Figure 8: Further significant internal rot in fan deck longitudinal joist support.
Figure 9: Further significant internal rot in fan deck longitudinal and column.

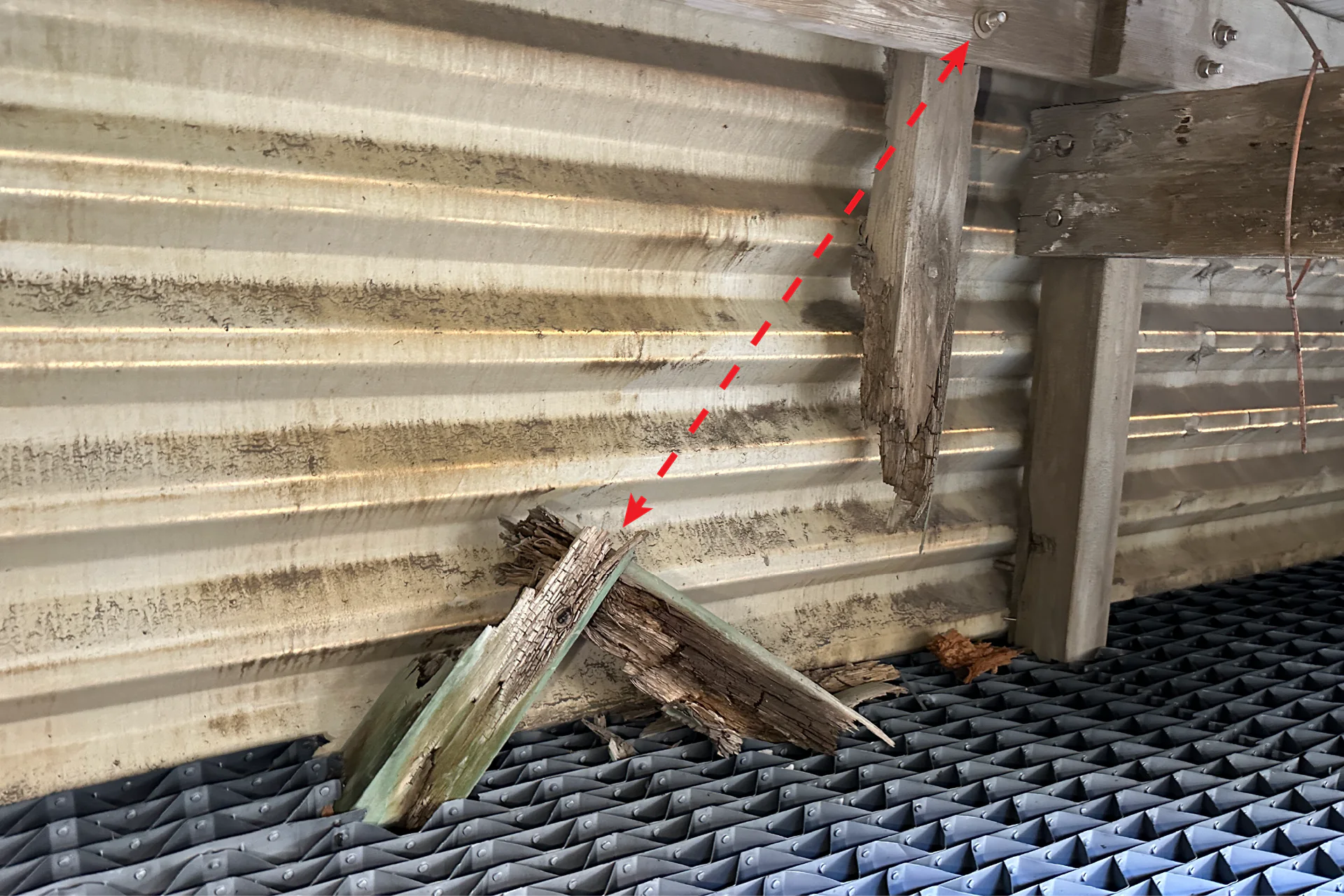

Figure 10: Cell 2 failed transverse brace as a result of excessive rot.

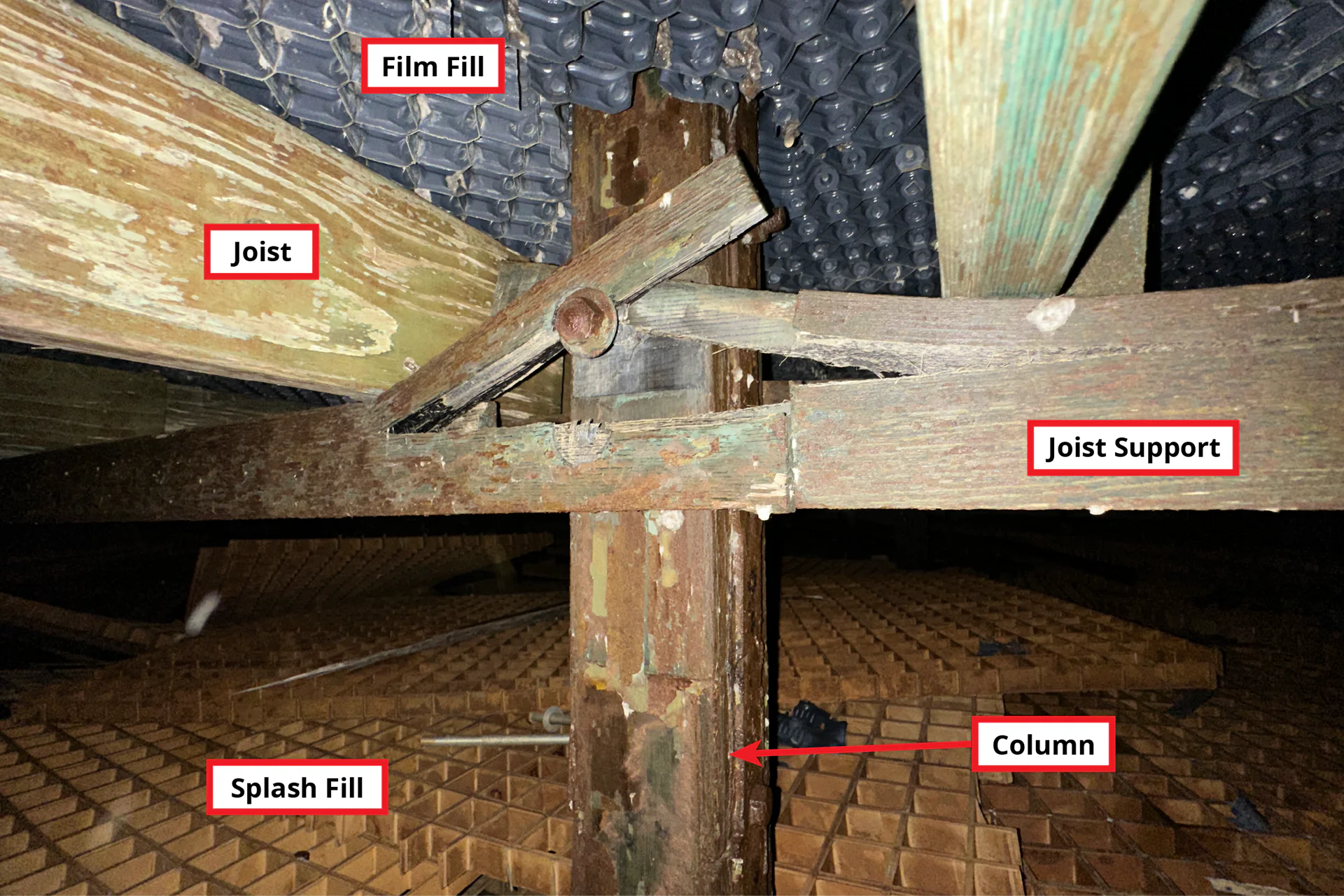

Figure 11: Fill support overview (Cell 7F1). Numerous joist supports failed at the column hardware connection

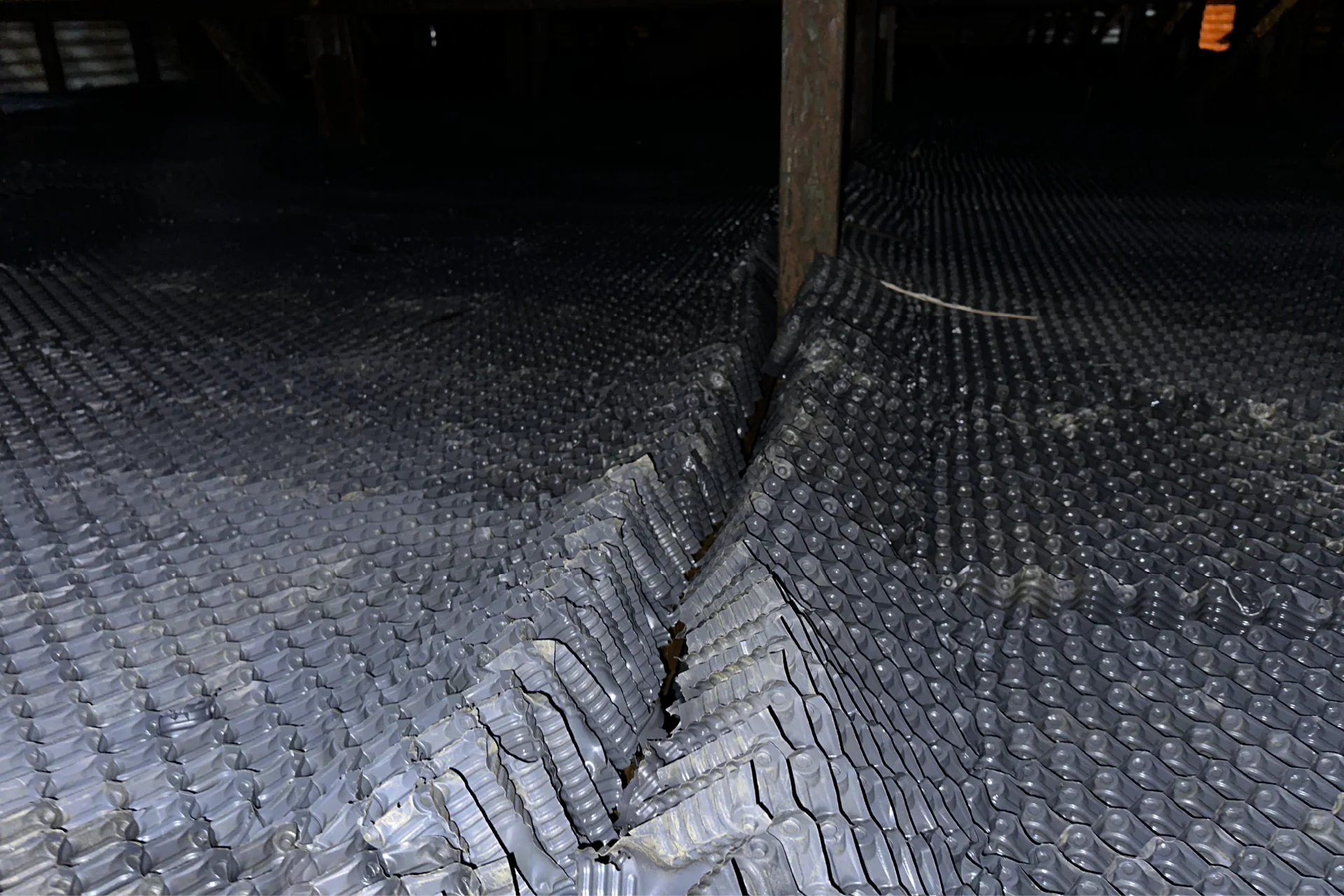

Figure 14: Each top fill pack is fabricated to fit above longitudinal ties. Each fill “lip” is heavily deflected as fill media begins to collapse.

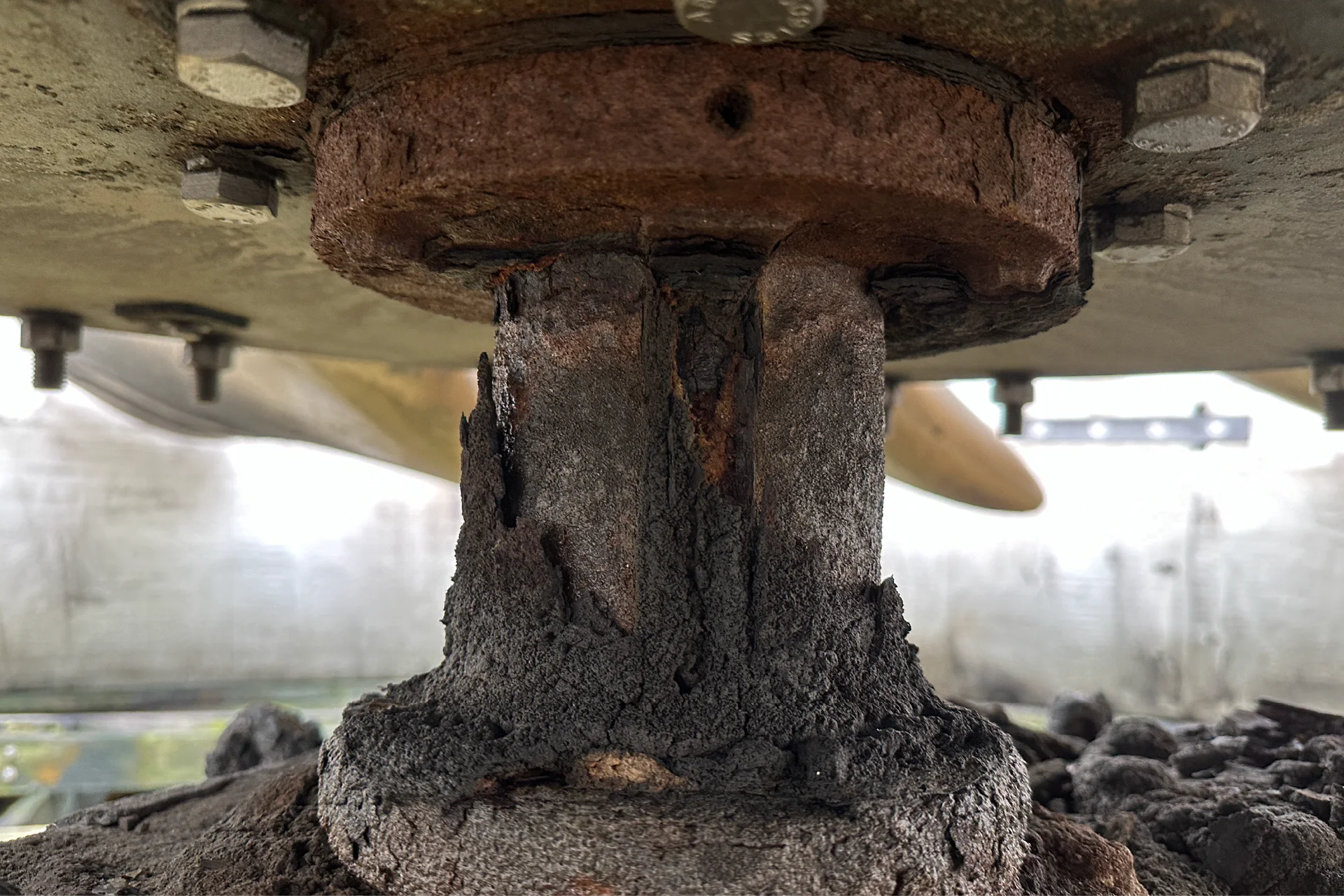

Figure 16: Heavily corroded gearbox output shaft.
Figure 17: Heavily corroded gearbox output shaft.

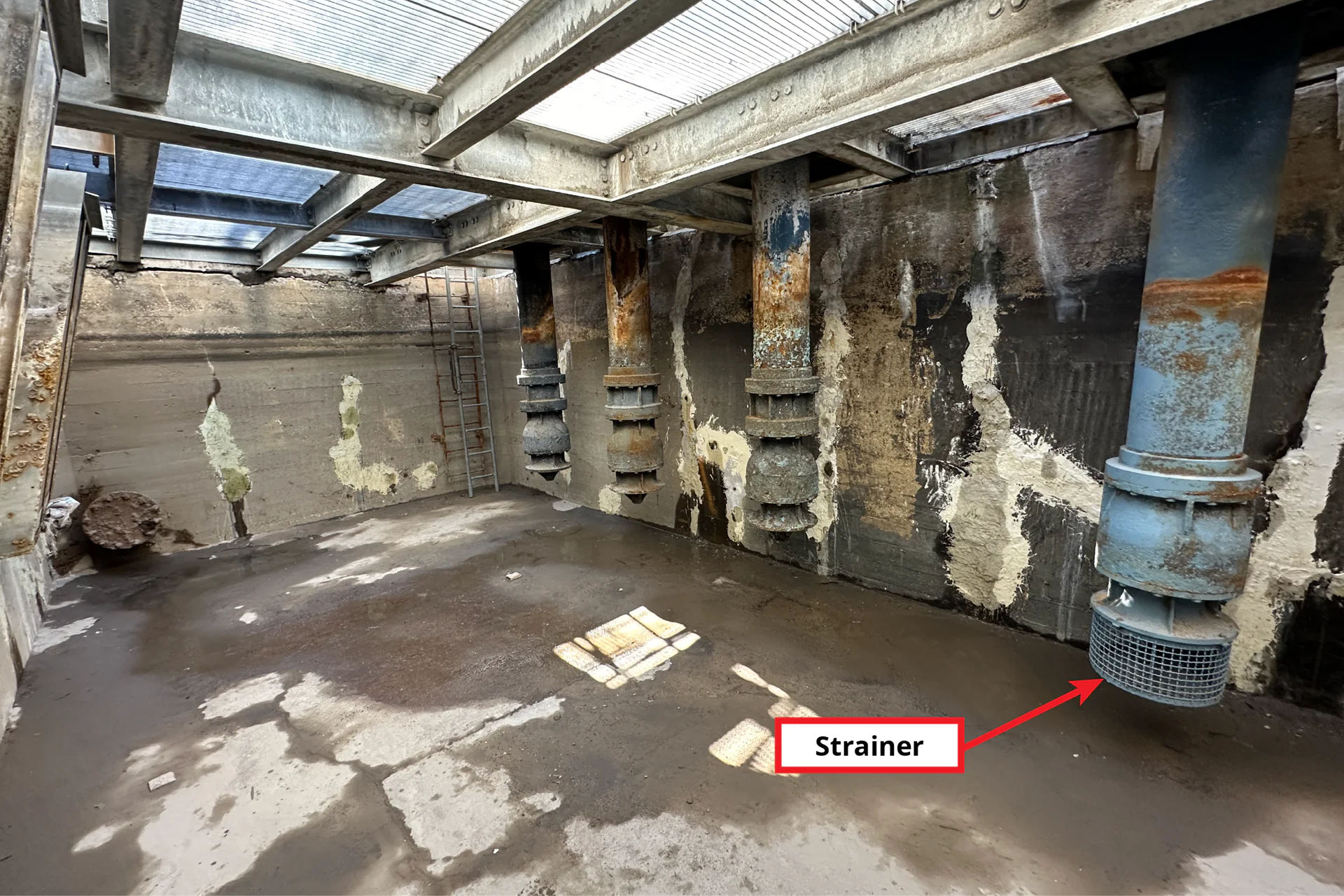

Figure 18: Three of the four vertical turbines are absent strainers.
Reasons to Work with OBR Cooling Towers
Expert Engineering Team
Specialized in mechanical, structural, and thermal analysis.
Comprehensive Reporting
Receive a full diagnostic report with clear, prioritized recommendations.
Fast Response Time
Nationwide coverage with quick turnaround times.
Proven Customer Success
Our inspections have helped clients save thousands in repair costs by identifying issues before they escalate.
Schedule Your Professional Cooling Tower Inspection Today!
